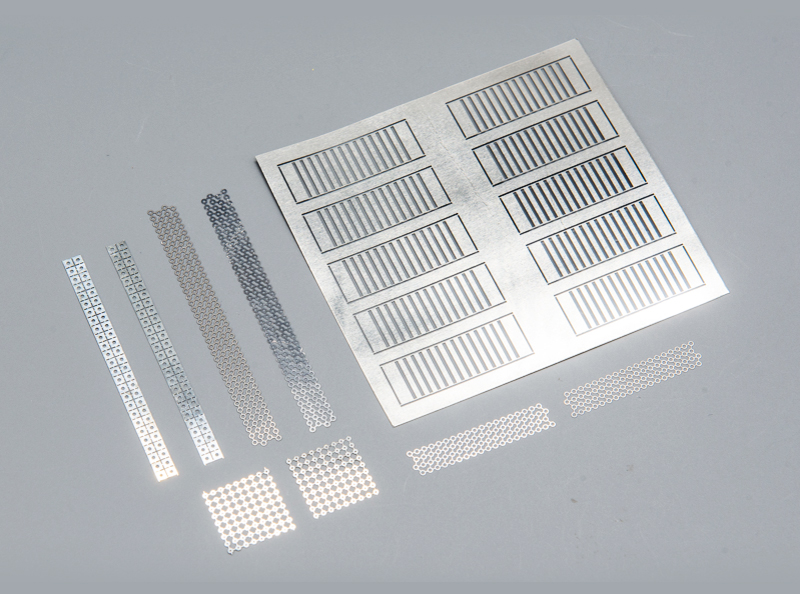

Array Preform
Array Preform
Array Preform
It is often used when soldering is difficult or impossible depending on the type and usage method of the connector. Manufactured in the same way as connectors, complex and diversely shaped connectors can be soldered easily, quickly, and precisely.

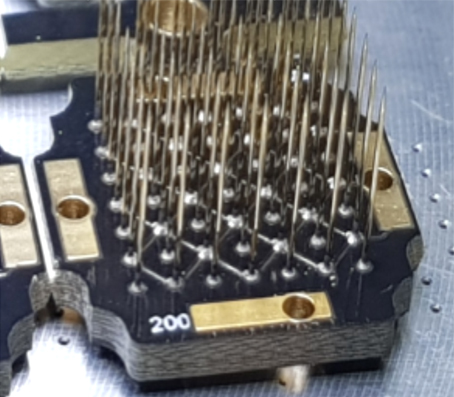

The pin spacing is very tight and the pins are long, making soldering difficult.

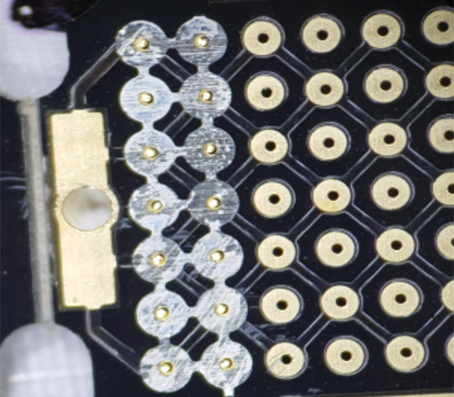

Array preform insertion

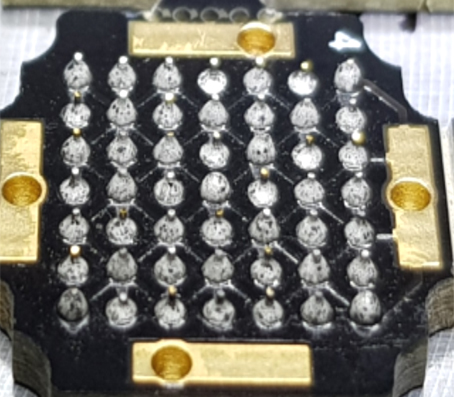

Securing the required amount of lead and forming perfect fillets

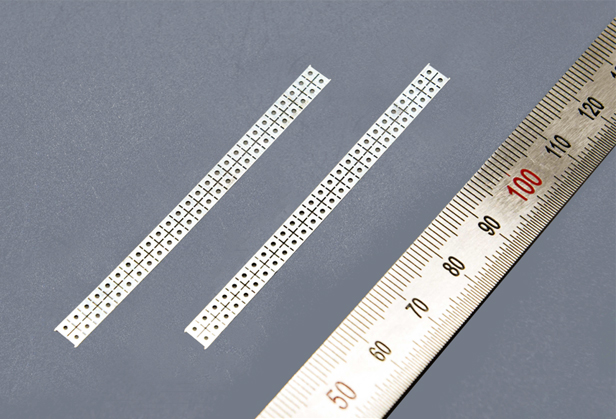

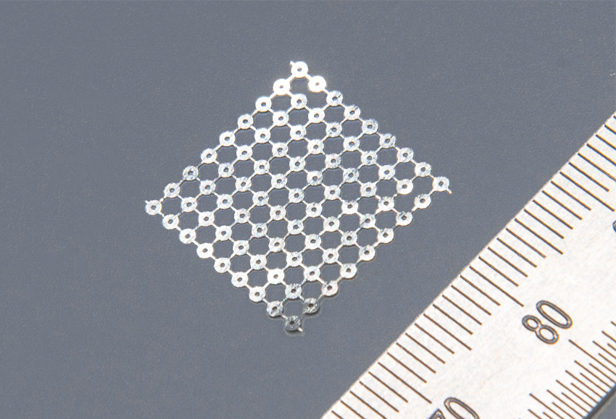

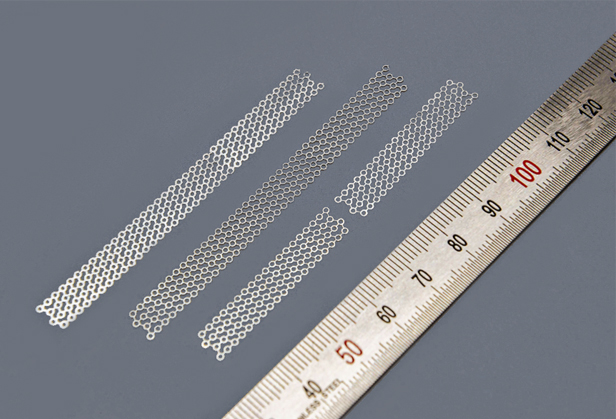

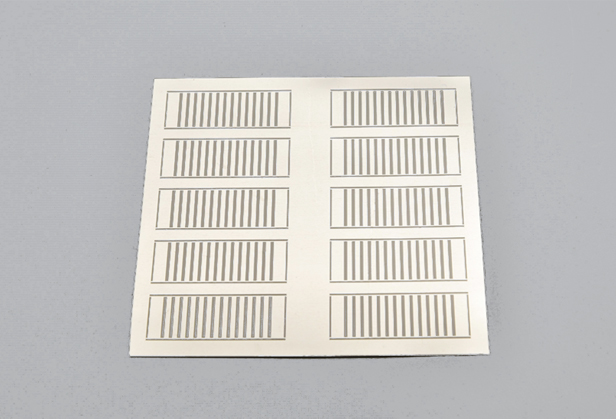

Type 1
Type 2
Type 3
Type 4
Size
The shape and size can be customized to suit the customer.
Alloy
| Sn | Ag | Cu | Bi | Pb | Melting P. | ||
|---|---|---|---|---|---|---|---|
| Lead - Free | SAC305 | 96.5 | 3.0 | 0.5 | - | - | 217 - 219 |
| Sn96.5Ag3.5 | 96.5 | 3.5 | - | - | - | 217 | |
| SACX(SAC0807) | 98.5 | 0.8 | 0.7 | - | - | 217 - 228 | |
| SACX(SAC0307) | 99.0 | 0.3 | 0.7 | - | - | 219 - 229 | |
| SAC357 | 95.8 | 3.5 | 0.7 | - | - | 217 | |
| SAC387 | 95.5 | 3.8 | 0.7 | - | - | 217 | |
| SAC405 | 95.5 | 4.0 | 0.5 | - | - | 217 - 218 | |
| Low - T | SnBi57.6Ag0.4 | 42 | 0.4 | - | 57.6 | - | 138 |
| Tin - Lead | Sn63PB37 | 63.0 | - | - | - | 37.0 | 183 |
| Sb62Pb36Ag2 | 62.0 | 2.0 | - | - | 36.0 | 179 - 182 | |
| Sn62.8Pb36.8Ag0.4 | 62.0 | 0.4 | - | - | 36.8 | 179 - 183 |
