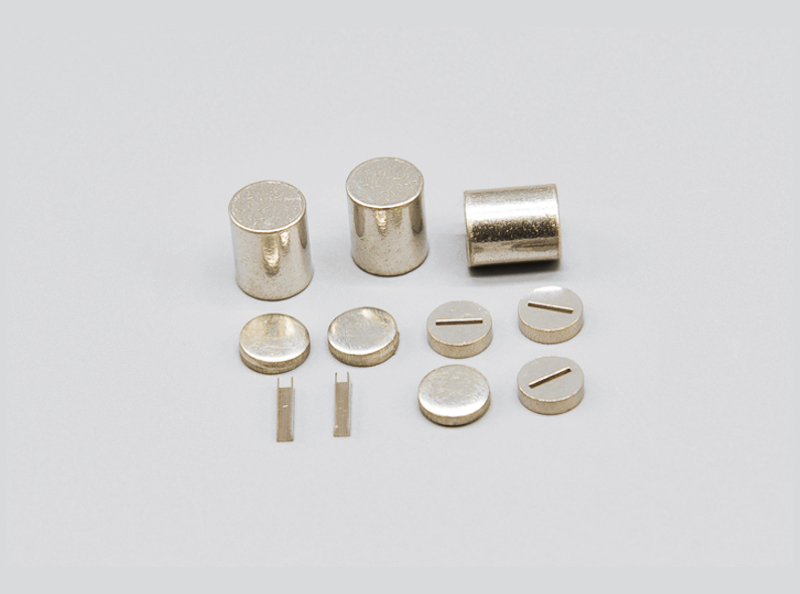

Special Preform
Special Preform
Special Preform
We provide a variety of soldering solutions in special shapes and sizes for customer needs.
Type 1
Bonding harness cables and terminals
Prevents soldering defects by supplying the correct amount of solder to prevent small and excessive soldering
Type 2
Easy soldering by inserting Paste Solder into the inapplicable base material
Type 3
Apply to areas where Paste Solder connot be applied
Type 4
Apply to areas where Paste Solder connot be applied
Size
The shape and size can be customized to suit the customer.
Alloy
| Sn | Ag | Cu | Bi | Pb | Melting P. | ||
|---|---|---|---|---|---|---|---|
| Lead - Free | SAC305 | 96.5 | 3.0 | 0.5 | - | - | 217 - 219 |
| Sn96.5Ag3.5 | 96.5 | 3.5 | - | - | - | 217 | |
| SACX(SAC0807) | 98.5 | 0.8 | 0.7 | - | - | 217 - 228 | |
| SACX(SAC0307) | 99.0 | 0.3 | 0.7 | - | - | 219 - 229 | |
| SAC357 | 95.8 | 3.5 | 0.7 | - | - | 217 | |
| SAC387 | 95.5 | 3.8 | 0.7 | - | - | 217 | |
| SAC405 | 95.5 | 4.0 | 0.5 | - | - | 217 - 218 | |
| Low - T | SnBi57.6Ag0.4 | 42 | 0.4 | - | 57.6 | - | 138 |
| Tin - Lead | Sn63PB37 | 63.0 | - | - | - | 37.0 | 183 |
| Sb62Pb36Ag2 | 62.0 | 2.0 | - | - | 36.0 | 179 - 182 | |
| Sn62.8Pb36.8Ag0.4 | 62.0 | 0.4 | - | - | 36.8 | 179 - 183 |
